Ash wood blocks from Davey & Co.
Single and double blocks available, triple blocks available by special order.
Inspired by the 1928 range, Davey has carefully developed these blocks to have the right proportions for the efficient use with ropes from 8mm to 14mm. They are strong, simple and functional but at the same time have the beauty and elegance to enhance the finest of craft.
Key Features

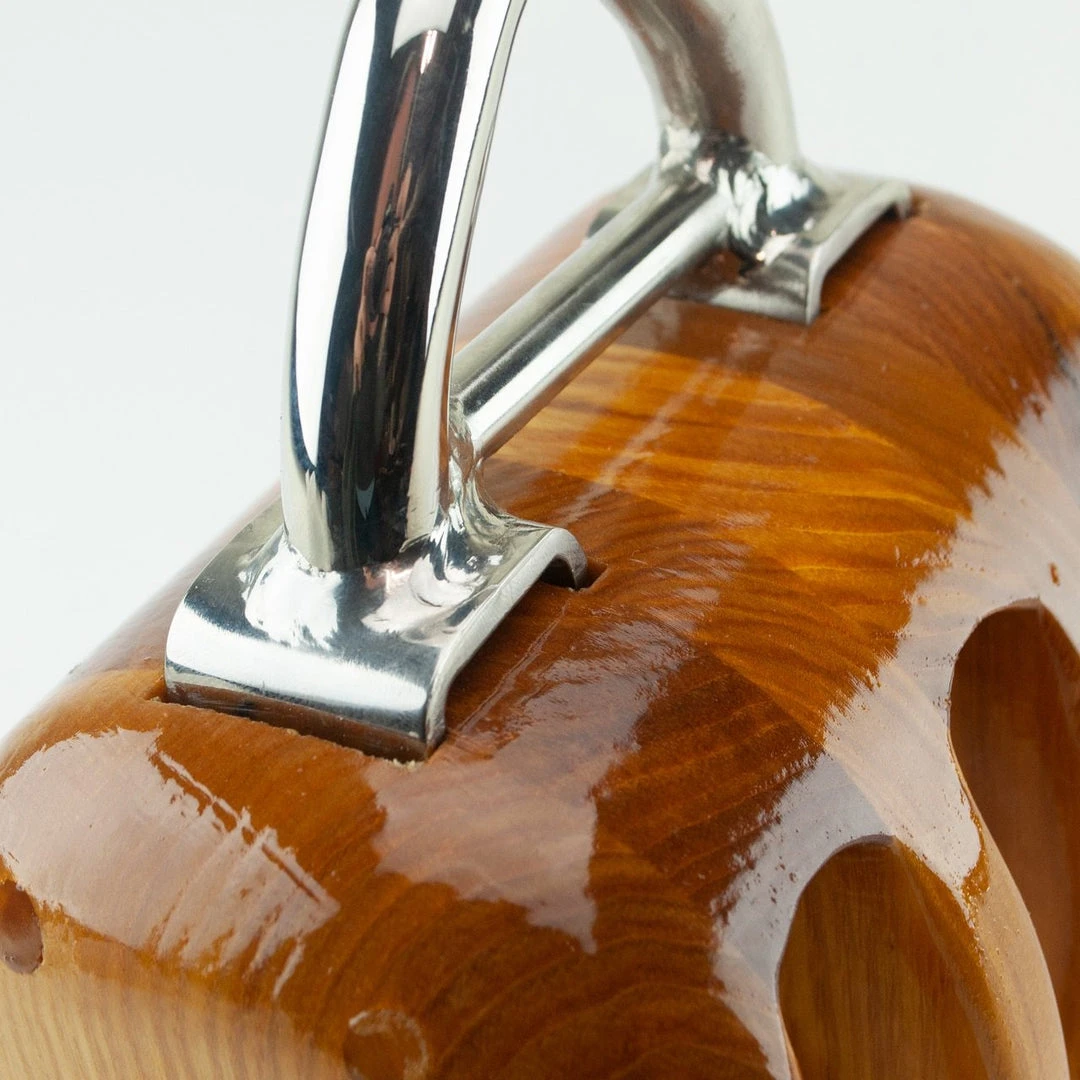

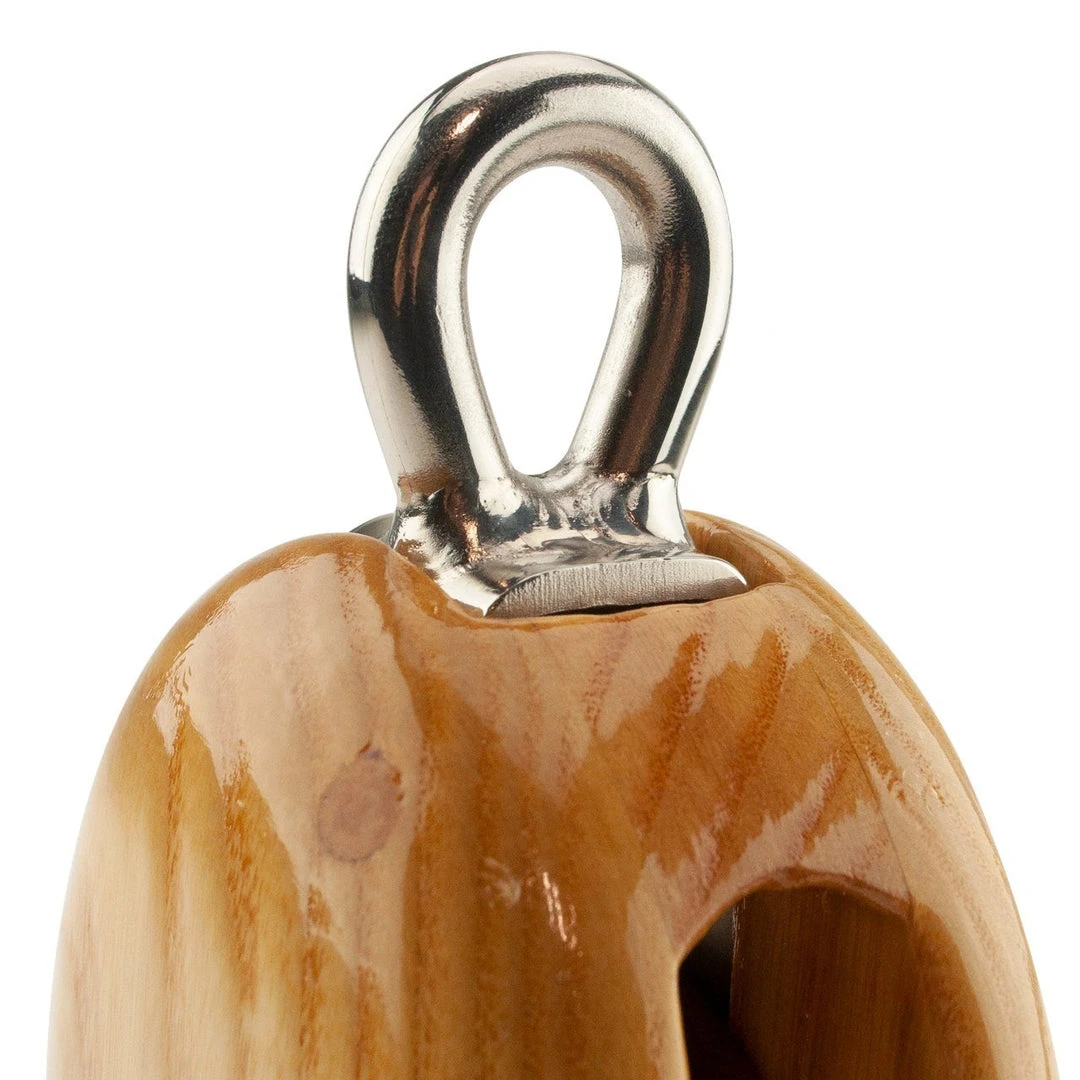

Bindings: Heavy gauge stainless steel – internal.
Sheaves: Tufnol type material as standard, aluminium bronze as an option.
Bearings: Plain on oversized SS spindles to spread the load and ensure smooth running.
Shell: High quality ash, formed into a smooth oval shape and varnished.
Maintenance: By removing just one machine screw the block can easily be disassembled for inspection and maintenance without damaging the wooden shell.
Appearance: Just beautiful!

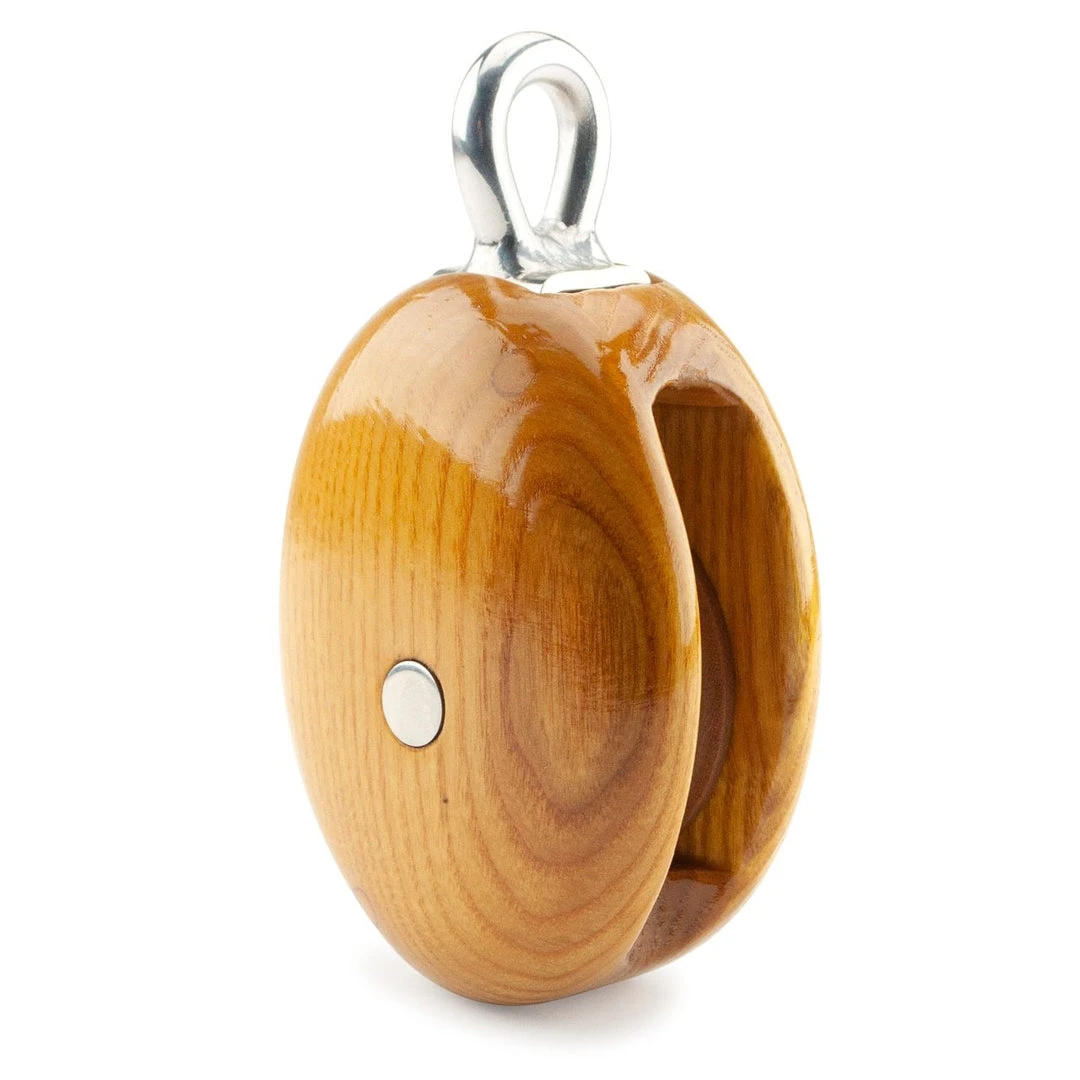

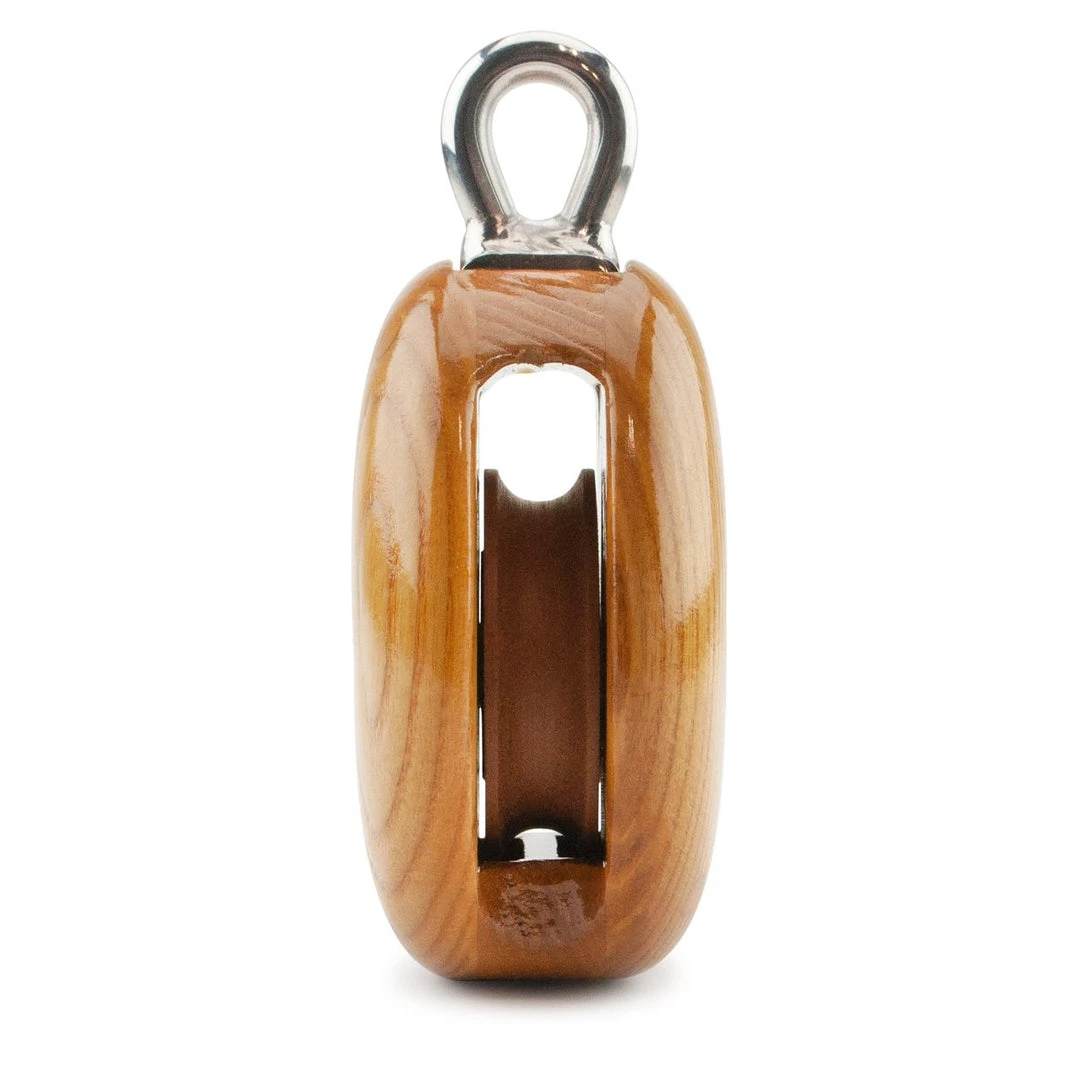

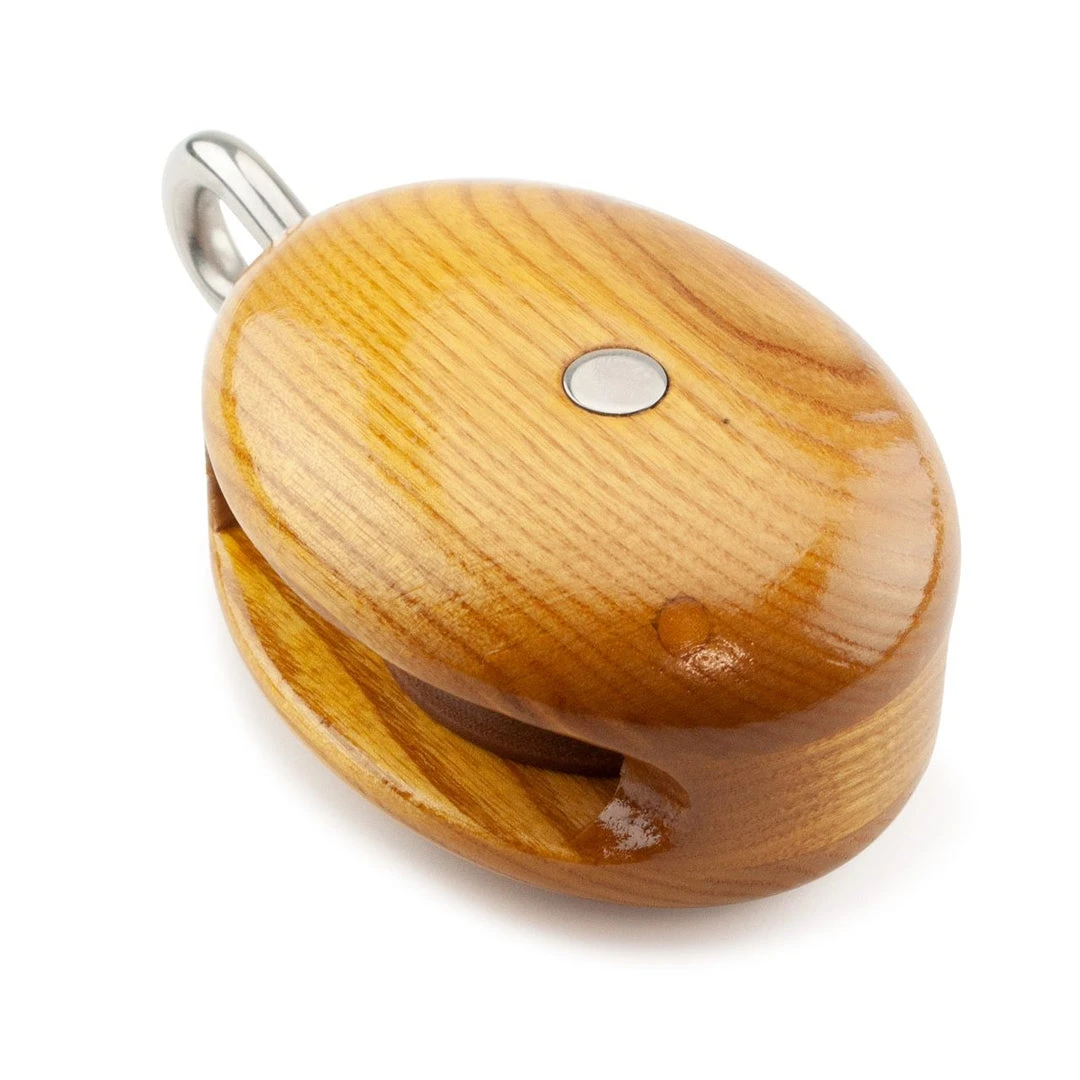

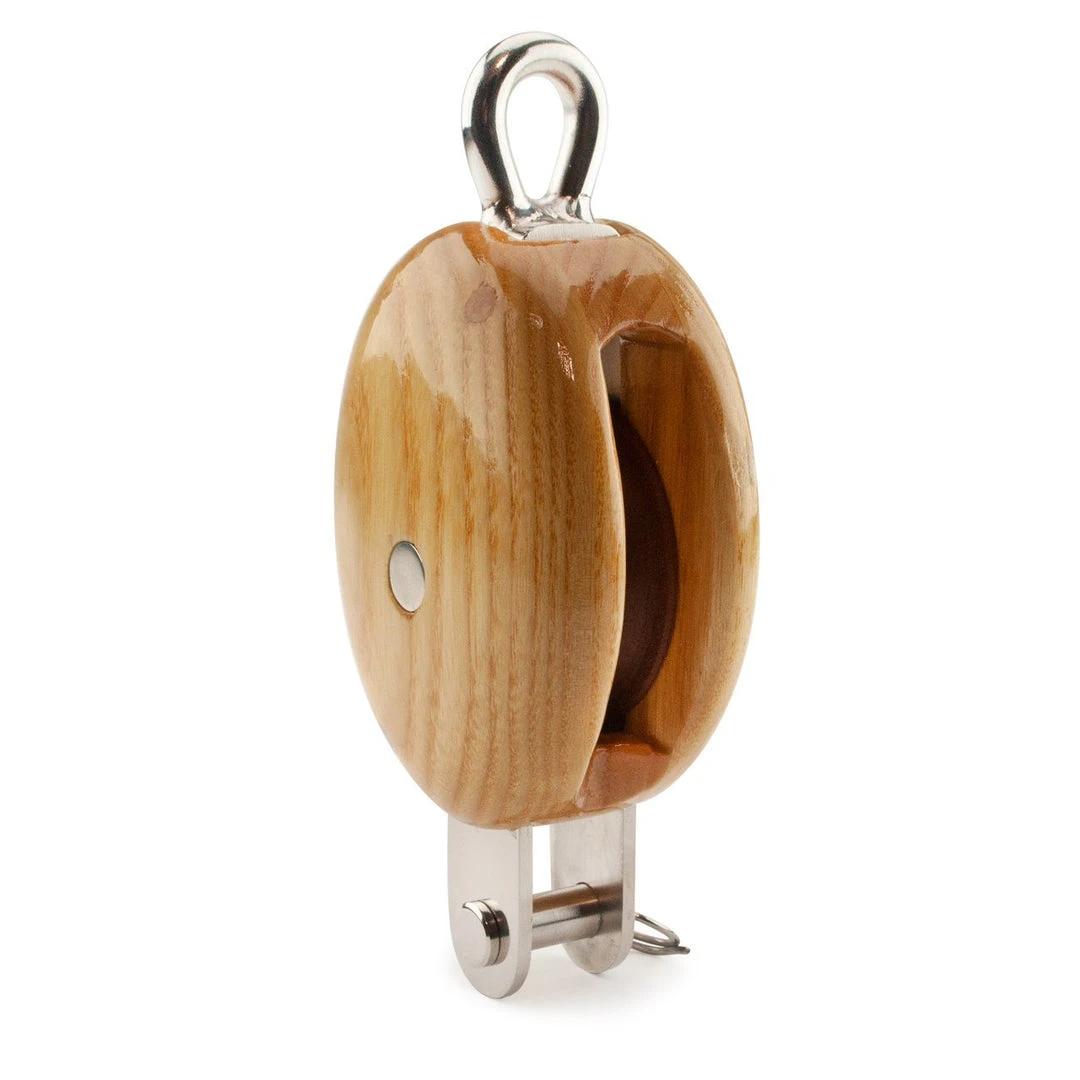

Single block
0610/AH/075 3 in./75mm
0610/AH/088 3 1/2 in./88mm
0610/AH/100 4 in./100mm

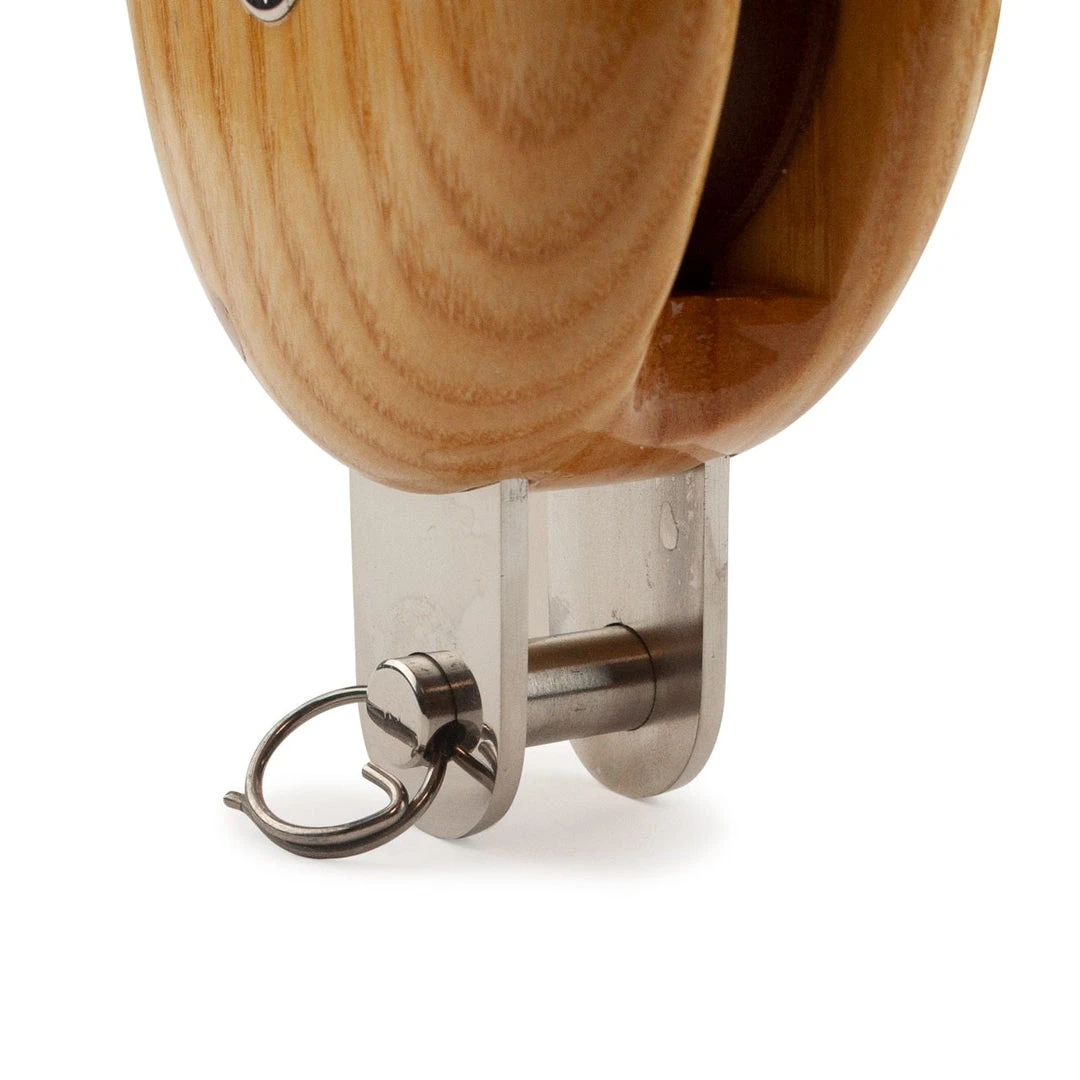

Single block w/becket
0611/AH/075 3 in./75mm
0611/AH/088 3 1/2 in./88mm
0611/AH/100 4 in./100mm

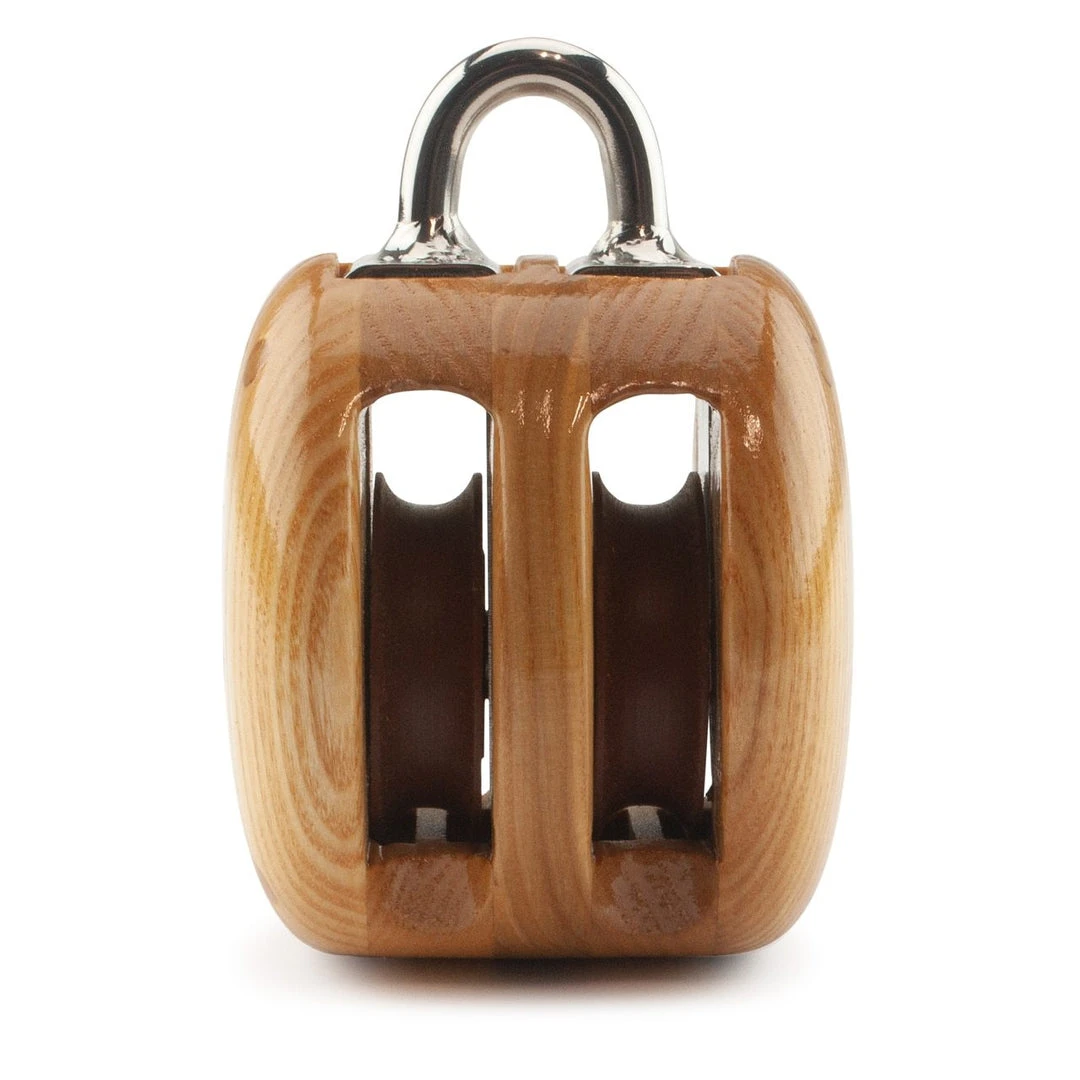

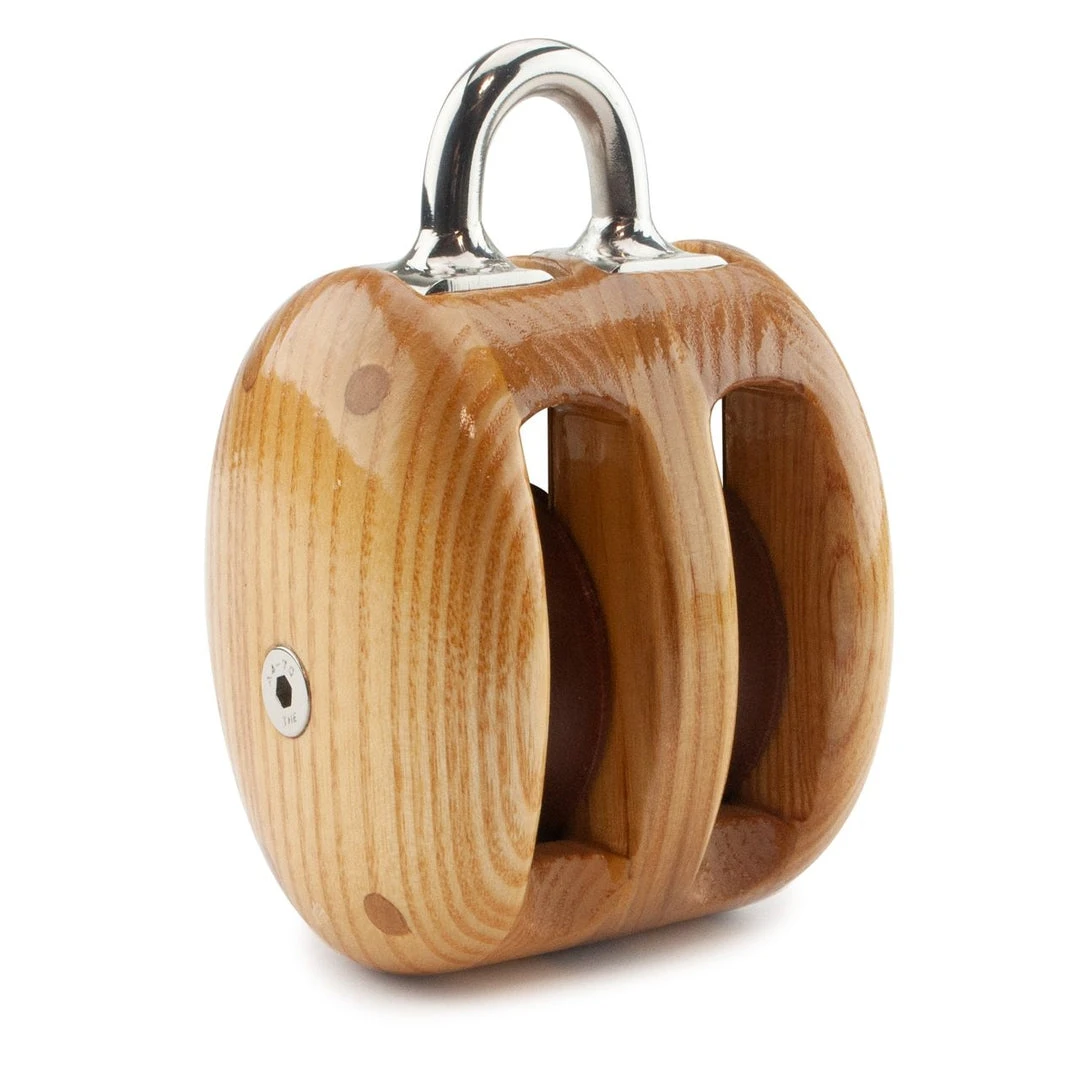

Double block
0612/AH/075 3 in./75mm
0612/AH/088 3 1/2 in./88mm
0612/AH/100 4 in./100mm
Double block w/becket
0613/AH/075 3 in./75mm
0613/AH/088 3 1/2 in./88mm
0613/AH/100 4 in./100mm
Triple blocks available by special order
Sizing Table
|
Shell Length |
Rope Size |
Sheave Diameter |
SWL Kg |
|
3″ 75mm |
8 – 10 |
40 |
1500 |
|
31‚ÅÑ2″ 88mm |
10 – 12 |
50 |
1750 |
|
4″ 100mm |
12 – 14 |
60 |
2000 |
